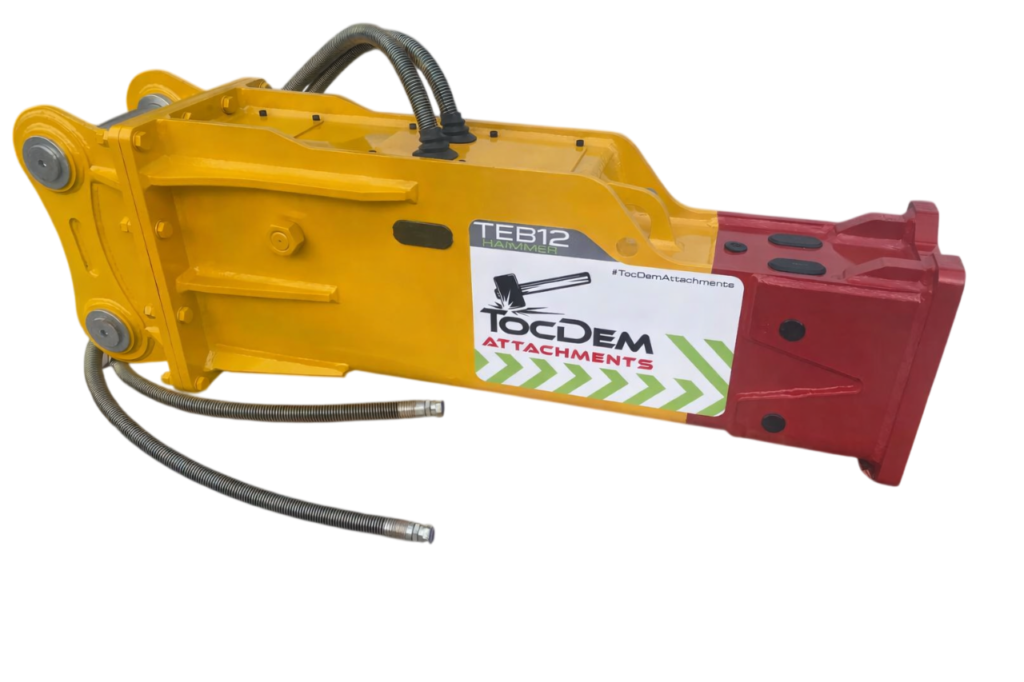

TEB12 TocDem Hydraulic Hammer for 88,180 to 121,250 lbs Excavators
Powerful Hydraulic Hammer for Demolition, Construction and Utility Applications
The TEB12 TocDem Hydraulic Hammer is built to deliver dependable breaking performance across demolition, construction, utility installation, roadwork and excavation projects. Designed for excavators weighing 88,180 to 121,250 lbs (40 to 55 tonnes), it provides the impact energy needed to efficiently break concrete, asphalt, rock and other demanding materials.
As an established British manufacturer expanding its support across the United States and Canada, TocDem combines proven engineering with practical attachment solutions built for professional contractors. The TEB12 is designed to perform in demanding working environments while delivering the reliability today’s operators expect.
What We Offer at TocDem
- 3-Year Warranty
- Trade-Ins Welcome
- Technical Support
- Replacement Parts Available
- Service Support Available
Specifications
| Specification |
Value |
| Model |
TEB12 |
| Suitable Excavator Weight |
88,180 to 121,250 lbs (40 to 55 tonnes) |
| Chisel Diameter |
6.89″ (175 mm) |
| Attachment Weight |
9,281 lbs (4,210 kg) |
| Overall Length |
133.86″ (3,400 mm) |
| Operating Pressure |
2,276 to 2,560 psi (160 to 180 kg/cm²) |
| Oil Flow |
55.5 to 76.6 gal/min (210 to 290 L/min) |
| Blow Rate |
200 to 350 bpm |
| Energy Class |
10,000 |
| Hose Diameter |
1.25″ |
Key Features
- High blow rate for powerful and efficient breaking performance.
- Delivers consistent impact energy for concrete, rock and other demanding demolition applications.
- Heavy-duty construction designed for large excavators operating in demanding environments.
- Precision-engineered internal components for dependable operation.
- Complete installation package supplied with every hydraulic hammer.
- Low-maintenance design to help reduce downtime.
- Backed by a 3-Year Warranty.
After Sales Support, Quality Control & Research and Development
Quality remains a priority throughout every stage of production. Every TocDem Hydraulic Hammer undergoes inspection and testing before delivery to help ensure dependable performance and reliability in the field.
Continuous product development allows TocDem to improve its attachment range while maintaining the durability and performance professional contractors expect.
Technical support and replacement parts are available to help keep your hydraulic hammer operating efficiently throughout its service life.
Included With Every TEB12 Hydraulic Hammer
Every TEB12 Hydraulic Hammer is supplied complete and ready for installation with:
- Head Bracket / Hanger
- Mounting Pins
- Hydraulic Hoses
- Quick Couplings
- Two Chisels / Working Tools
- Spare Parts Kit
- Toolbox
Important Information
- The TEB12 Hydraulic Hammer is supplied complete and ready for installation.
- USA pricing shown reflects the latest confirmed pricing.
- Product specifications may change as part of ongoing product development.
Warranty
Every TocDem Hydraulic Hammer is backed by a 3-Year Warranty.
Safety
Hydraulic Hammers should only be operated by trained personnel following appropriate site safety procedures.
For safe operation:
- Always operate the hammer from the excavator operator’s seat.
- Wear appropriate eye, hearing and personal protective equipment.
- Operate the hammer perpendicular to the material surface.
- Never use the hammer as a pry bar.
- Avoid striking the same location continuously for extended periods.
- Stop operation immediately if excessive vibration, hydraulic leaks or abnormal operation occurs.
- Always inspect the attachment before use and follow the recommended operating procedures.
